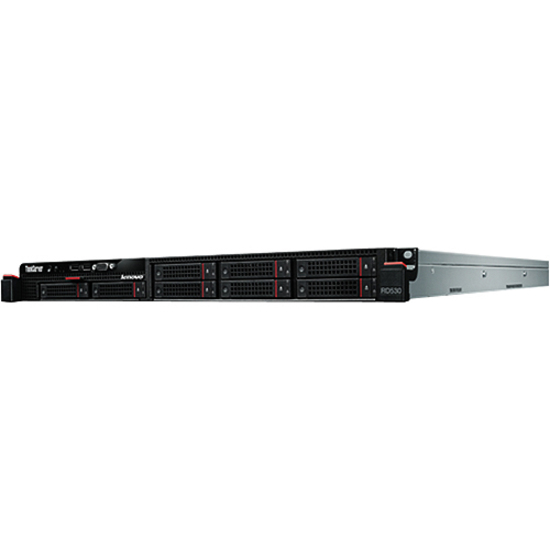

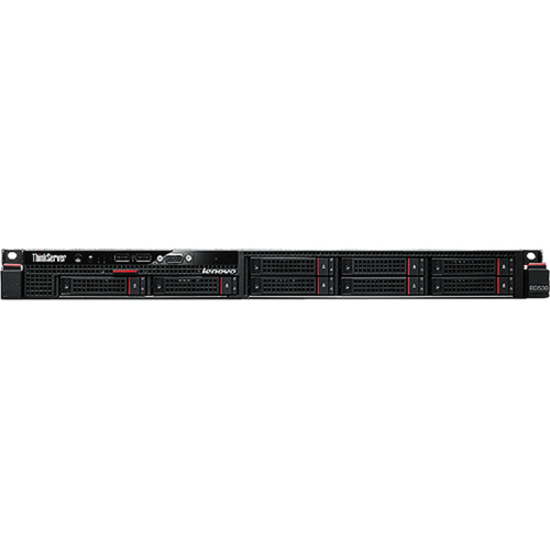

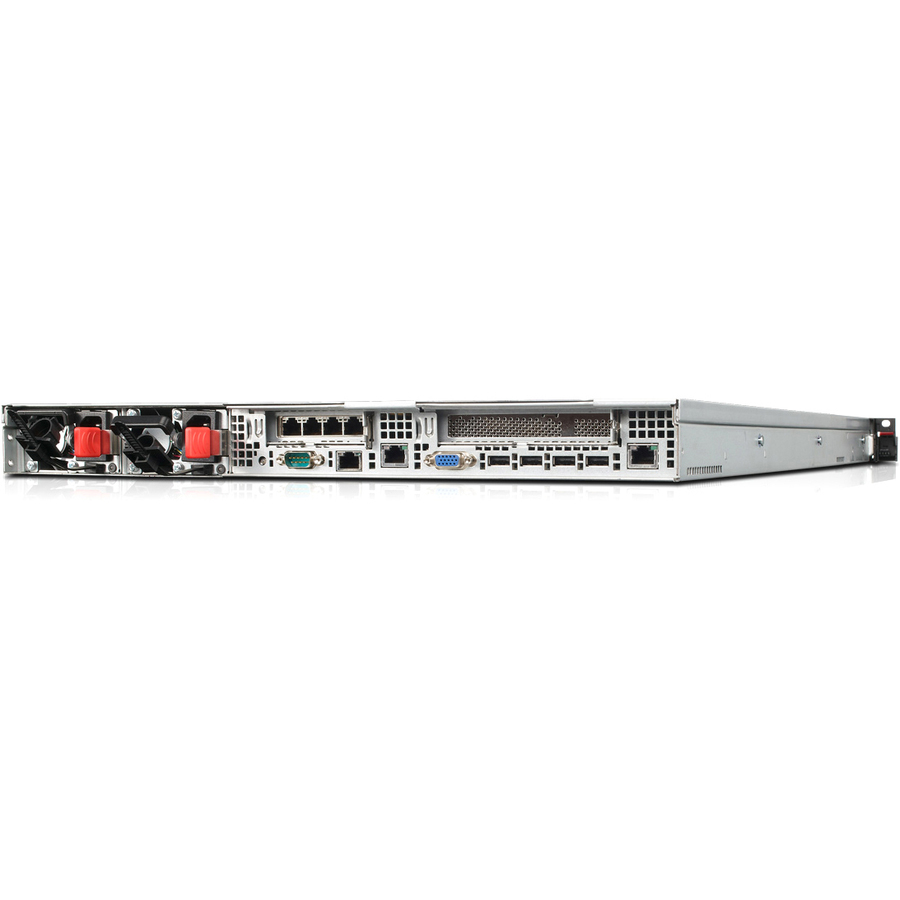

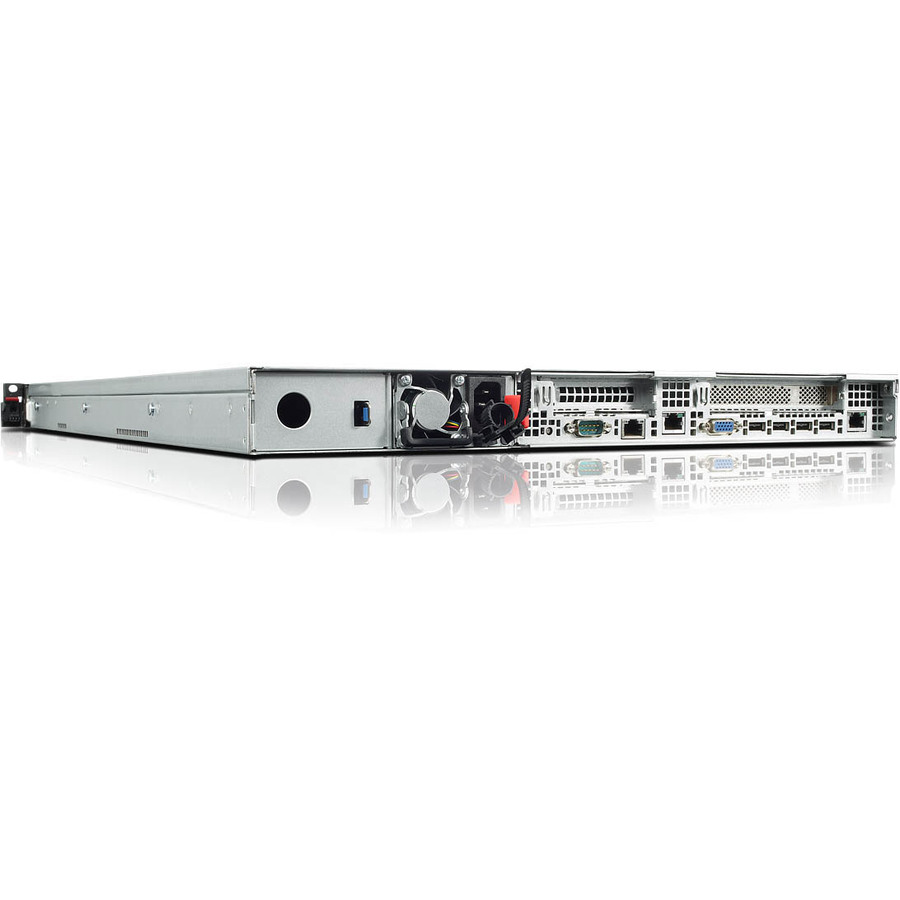

Lenovo ThinkServer RD530 2575A4U 1U Rack Server - 1 x Intel Xeon E5-2620 Hexa-core (6 Core) 2 GHz

2 Processor Support - 8 GB Standard DDR3 SDRAM Maximum RAM - Serial ATA/600 RAID Supported, 6Gb/s SAS Controller - Gigabit Ethernet - RAID Level: 0, 1, 1+0, 5, 5+0, 6, 6+0 - 1 x 800 W - ASPEED AST2300 Graphic Card

Lenovo ThinkServer RD530 2575A4U 1U Rack Server - 1 x Intel Xeon E5-2620 Hexa-core (6 Core) 2 GHz 2575A4U

Image(s) and product specifications may not represent actual product and are subject to change.

Web ID: 1022642397
Mfr. Part: 2575A4U

Reliable roots

Lenovo ThinkServer™ systems are powered by proven technology, and value is added to your purchase through the availability of superior technical service and support. To enhance your productivity while reducing your costs, our attractively priced servers are supported by creative financing options.

Overview
Buying Guide
Options & Accessories
General Information
Manufacturer:
Lenovo Group Limited
Manufacturer Part Number:
2575A4U
Manufacturer Website Address:
http://www.lenovo.com/ca/en
Manufacturer Website Address
http://www.lenovo.com/us/en/
Brand Name:
Lenovo
Product Line:
ThinkServer
Product Series:
RD530
Product Model:
2575A4U
Product Name:
ThinkServer RD530 2575A4U Server
Product Type:
Server
Processor & Chipset
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2620
Processor Core:
Hexa-core (6 Core)
Processor Speed:
2 GHz
Cache:
15 MB
QuickPath Interconnect:
7.20 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C602J
Memory
Standard Memory:
8 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
DDR3-1333/PC3-10600
Number of Total Memory Slots:
20
Storage
Number of Hard Drives:
No
Optical Drive Type:
No
Controllers
Controller Type:
6Gb/s SAS
Controller Type
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
0, 1, 1+0, 5, 5+0, 6, 6+0
I/O Expansions
Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8
Display & Graphics
Graphics Controller Manufacturer:
ASPEED
Graphics Controller Model:
AST2300
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Input Devices
Keyboard:
No
Pointing Device Type:
No
Interfaces/Ports
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
6
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes
Software
Operating System:
No
Power Description
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
800 W
Miscellaneous
Package Contents:
  • ThinkServer RD530 2575A4U Server
  • Rack Kit
Green Compliant:
Yes
Green Compliance Certificate/Authority:
ENERGY STAR
Green Compliance Certificate/Authority
RoHS
Physical Characteristics
Form Factor:
Rack
Rack Height:
1U
Height:
1.7"
Height
1.7" (43.7 mm)
Width:
19"
Width
19" (482.6 mm)
Depth:
28.4"
Depth
28.4" (721.4 mm)
Weight (Approximate):
17.01 kg
Weight (Approximate)
37.50 lb
Warranty
Limited Warranty:
3 Year
  • Lenovo Priority Technical Support - 5 Year Extended Service - Service

    Price: $306.85
  • Lenovo TopSeller Service - 3 Year - Warranty

    Price: $372.87
  • Lenovo Service/Support - 4 Year Extended Service - Service

    Price: $637.53
  • Lenovo TopSeller Service - 3 Year - Warranty

    Price: $420.38
  • Lenovo Service - 4 Year Upgrade - Warranty

    Price: $710.02
