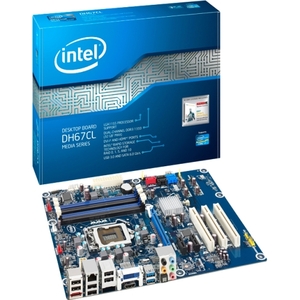

Intel Media DH67CL Desktop Motherboard - Intel H67 Express Chipset - Socket H2 LGA-1155 - 10 x Bulk Pack

ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - 4 x Memory Slots - Serial ATA/600, Serial ATA/300 RAID Supported Controller - CPU Dependent Video - 2 x USB 3.0 Port - HDMI - Intel - 7.1 Audio Channels - Gigabit Ethernet - 2 x PCI Express x1 Slots - 1 x PCI Express x16 Slots - 8 x USB Ports - S/PDIF - DVI - Onboard S/PDIF Header - 5 x SATA Interfaces

Intel Media DH67CL Desktop Motherboard - Intel H67 Express Chipset - Socket H2 LGA-1155 - 10 x Bulk Pack BLKDH67CLB3

Image(s) and product specifications may not represent actual product and are subject to change.

Web ID: 1019355220
Mfr. Part: BLKDH67CLB3

The Intel Desktop Board DH67CL is an Intel H67 Express chipset-based desktop board in ATX form factor. It supports the 2nd generation Intel Core i7 processors, Intel Core i5 processors, and other Intel processors in the LGA1155 package. The board is featured with DVI-I and HDMI connectors, and supports dual independent display for processors with Intel HD Graphics. Powered by the 2nd generation Intel Core processors, DH67CL delivers a superb visual performance for sharper images, richer color, and lifelike audio and video.

Intel Desktop Board DH67CL also offers premium features, such as two SATA 6 Gb/s ports, two USB 3.0 ports with 5Gb/s link speed, and Intel Rapid Storage Technology (Intel RST) for RAID 0, 1, 5, and 10, which provides new levels of protection, performance and expandability.

Overview
Similar Products
General Information
Manufacturer:
Intel Corporation
Manufacturer Part Number:
BLKDH67CLB3
Manufacturer Website Address:
http://www.intel.com
Brand Name:
Intel
Product Line:
Media
Product Model:
DH67CL
Product Name:
Media DH67CL Desktop Motherboard
Packaged Quantity:
10
Package Type:
Bulk
Product Type:
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:
Intel
Chipset Model:
H67 Express
Total Processor Supported:
1
Processor Socket:
Socket H2 LGA-1155
Processor Supported:
Core i3
Processor Supported
Core i5
Processor Supported
Core i7
64-bit Processing:
Yes
Memory
Number of Memory Slots:
4
Maximum Memory:
32 GB
Memory Standard:
DDR3-1066/PC3-8500
Memory Standard
DDR3-1333/PC3-10600
Memory Technology:
DDR3 SDRAM
I/O Controller
Controller Type:
Serial ATA/300
Controller Type
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
0
RAID Levels
1
RAID Levels
1+0
RAID Levels
5
Video
Onboard Video:
CPU Dependent Video
Graphics Controller Manufacturer:
Intel
Audio
Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC892
Audio Channels:
7.1
Network & Communication
Gigabit Ethernet:
Yes
I/O Expansions
Number of Total Expansion Slots:
6
Number of PCI Slots:
3
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
3
Number of PCI Express x1 Slots:
2
Number of PCI Express x16 Slots:
1
Interfaces/Ports
eSATA:
Yes
Total Number of USB Ports:
8
Number of USB 2.0 Ports:
6
Number of USB 3.0 Ports:
2
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
HDMI:
Yes
Number of HDMI Outputs:
1
DVI:
Yes
Number of DVI Outputs:
1
Network (RJ-45):
Yes
Onboard Interfaces
Number of SATA Interfaces:
5
Total Number of Onboard USB Ports:
8
Number of Onboard USB 2.0 Ports:
8
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes
Physical Characteristics
Form Factor:
ATX
Width:
11.6"
Width
11.6" (294.6 mm)
Depth:
9.6"
Depth
9.6" (243.8 mm)
