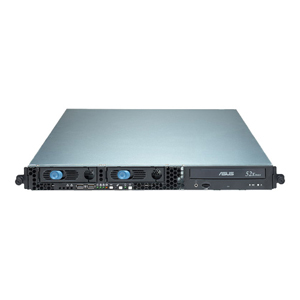

ASUS AP1600R-E2(BA2) Barebone System AP1600R-E2/BA2

Image here may not represent actual product.
ASUS AP1600R-E2(BA2) Barebone System **

ASUS Computer International: MFR Part # AP1600R-E2/BA2


  • Intel E7320
  • Socket 604
  • Xeon
  • 800 MHz Bus Speed
  • 8 GBGigabit Ethernet, Gigabit Ethernet

WebID: 1012077305


Overview

General Information


Manufacturer: ASUS Computer International
Manufacturer Part Number: AP1600R-E2/BA2
Manufacturer Website Address: usa.asus.com
 www.asus.com
Product Model: AP1600R-E2(BA2)
Product Name: AP1600R-E2(BA2) Barebone System
Marketing Information:

Adopting the latest technology, ASUS AP1600R-E2(BA2) Barebone System is able to meet the most demanding performance for our customers.

Product Type: Barebone System

Processor & Chipset


Processor Interface: Socket 604
Processor Support: Intel Xeon
Bus Speed: 800 MHz
Chipset: Intel E7320

Memory


Maximum Memory: 8 GB DDR333/PC2700 Registered DDR SDRAM ECC

Controllers


Controller: Intel Serial ATA Integrated

Display & Graphics


Graphics Controller: ATi Rage XL With 8 MB SDRAM Integrated

Network & Communication


Network: 1 x Broadcom 5705E IEEE 802.3ab Gigabit Ethernet 10/100/1000Mbps PCI Integrated
 1 x Broadcom 5721 IEEE 802.3ab Gigabit Ethernet 10/100/1000Mbps PCI Express Integrated

I/O Expansions


Expansion Bays: 1 x 5.25" External Removable Media Bay Total
 2 x Drive Bay Total Hot-swappable

Interfaces/Ports


Ports: 2 x 4-pin Type A USB 2.0 USB Rear
 2 x RJ-45 Network
 1 x 9-pin DB-9 Serial
 1 x IEEE 1284 Parallel
 2 x 4-pin Type A USB 2.0 USB Front
 1 x 15-pin HD-15 VGA
 1 x 6-pin mini-DIN (PS/2) Keyboard
 1 x 6-pin mini-DIN (PS/2) Mouse

Software


Operating System: Windows Small Business Server 2003 Supported
 Red Hat Enterprise Linux AS 3 Supported
 SuSE Linux Enterprise Server 8 Supported
 Windows Server 2000 Supported

Physical Characteristics


Dimensions: 1.72" Height x 17.52" Width x 23.62" Depth
 43.60 mm Height x 445 mm Width x 600 mm Depth
Weight: 10.35 kg
 22.82 lb

Warranty


Standard Warranty: 3 Year

Specifications

General Information


Manufacturer: ASUS Computer International
Manufacturer Part Number: AP1600R-E2/BA2
Manufacturer Website Address: usa.asus.com
 www.asus.com
Brand Name: ASUS
Product Model: AP1600R-E2(BA2)
Product Name: AP1600R-E2(BA2) Barebone System
Marketing Information:

Adopting the latest technology, ASUS AP1600R-E2(BA2) Barebone System is able to meet the most demanding performance for our customers.

Product Type: Barebone System

Processor & Chipset


Total Processor Support: 2
Processor Interface: Socket 604
Processor Support: Intel Xeon
Bus Speed Support: 800 MHz
Chipset: Intel E7320

Memory


Maximum Memory: 8 GB DDR333/PC2700 Registered DDR SDRAM ECC
Memory Slots: 184-pin DIMM (4 Total)

Controllers


Controller: Intel Serial ATA Integrated

Display & Graphics


Graphics Controller: ATi Rage XL With 8 MB SDRAM Integrated

Network & Communication


Network: 1 x Broadcom 5705E IEEE 802.3ab Gigabit Ethernet 10/100/1000Mbps PCI Integrated
 1 x Broadcom 5721 IEEE 802.3ab Gigabit Ethernet 10/100/1000Mbps PCI Express Integrated

I/O Expansions


Expansion Bays: 1 x 5.25" External Removable Media Bay Total
 2 x Drive Bay Total Hot-swappable
Expansion Slots: 1 x 64-bit /66 MHz PCI-X Total

Interfaces/Ports


Ports: 2 x 4-pin Type A USB 2.0 USB Front
 2 x 4-pin Type A USB 2.0 USB Rear
 2 x RJ-45 Network
 1 x 6-pin mini-DIN (PS/2) Mouse
 1 x 9-pin DB-9 Serial
 1 x IEEE 1284 Parallel
 1 x 15-pin HD-15 VGA
 1 x 6-pin mini-DIN (PS/2) Keyboard

Software


Operating System: Windows Small Business Server 2003 Supported
 Red Hat Enterprise Linux AS 3 Supported
 SuSE Linux Enterprise Server 8 Supported
 Windows Server 2000 Supported
Software Included:

ASWM 2.0


Power Description


Power Supply: 500 W Auto-switch

Physical Characteristics


Dimensions: 1.72" Height x 17.52" Width x 23.62" Depth
 43.60 mm Height x 445 mm Width x 600 mm Depth
Weight: 10.35 kg
 22.82 lb

Warranty


Standard Warranty: 3 Year

Warranty

Warranty


Standard Warranty: 3 Year
