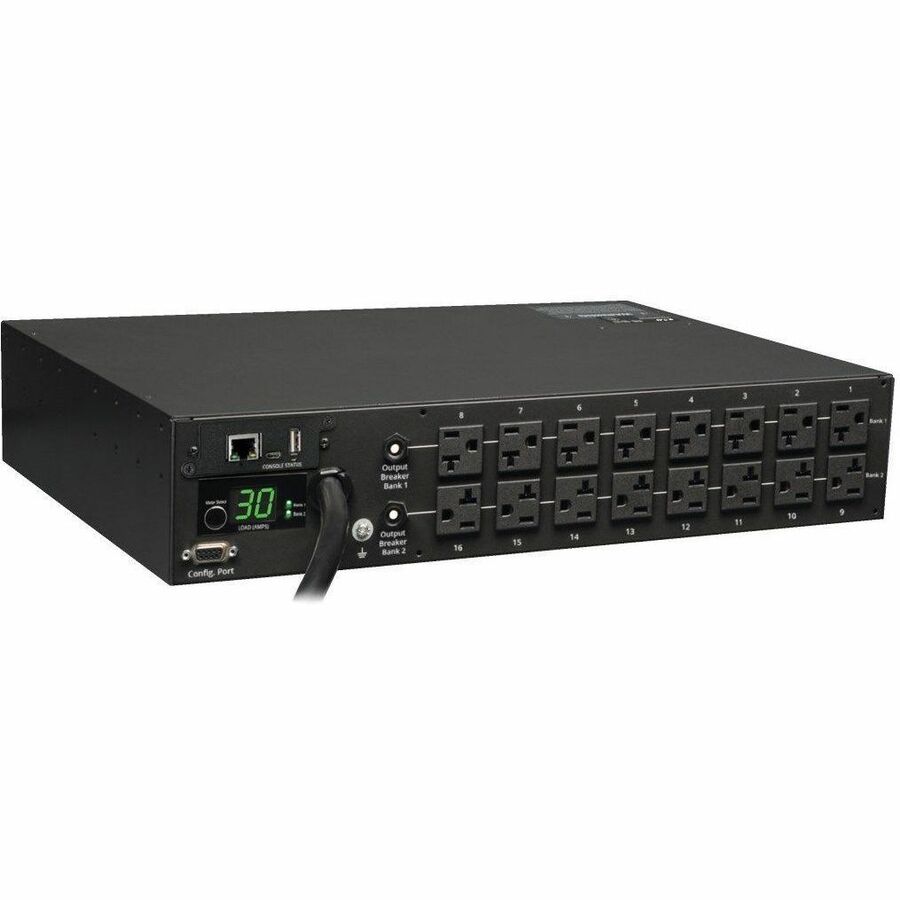

PDUMNH30 horizontal 2U monitored rack PDU supports 30A maximum capacity at 120V (agency de-rated to 24A / 2.88kW continuous). Includes 10ft./3m attached line cord with L5-30P input plug and 16 5-15/20R outlets. Outlets are arranged in two separately breakered 8 outlet load banks. Visual and remote current monitoring tracks total output load in amps, plus output current levels for each output load bank. Supports 2U horizontal rackmount installation with included mounting brackets. Included cord retention plates keep vital network equipment plugged in and continuously powered.
| Manufacturer: | Tripp Lite |
|---|---|
| Manufacturer Part Number: | PDUMNH30 |
| Manufacturer Website Address: | www.tripplite.com |
| Brand Name: | Tripp Lite |
| Product Series: | Monitored |
| Product Model: | PDUMNH30 |
| Product Name: | Monitored PDUMNH30 16-Outlets PDU |
| Product Type: | PDU |
| Input Receptacles: | NEMA L5-30P |
|---|---|
| Output Receptacles: | 16 x NEMA 5-15/20R |
| Protection Type: | Overload Protection |
| Input Voltage: | 120 V AC |
|---|---|
| Output Voltage: | 120 V AC |
| Current: | 24 A Derated Input Current |
| 30 A Maximum Input Current | |
| Frequency: | 60 Hz |
| Management: | Protocols:
|
|---|
| Interfaces/Ports: | 10/100Base-T Ethernet |
|---|
| Form Factor: | 2U Rack-mountable |
|---|---|
| Power Cord/Cable: | 10 ft |
| 3.05 m | |
| Height: | 3.5" |
| 88.9 mm | |
| Width: | 17.5" |
| 444.5 mm | |
| Depth: | 12.5" |
| 317.5 mm | |
| Weight (Approximate): | 13.80 lb |
| 6.26 kg |
| Package Contents: |
|
|---|---|
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | RoHS |
| Limited Warranty: | 2 Year |
|---|
