APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
| Manufacturer: | American Power Conversion Corp |
|---|---|
| Manufacturer Part Number: | AP8661 |
| Manufacturer Website Address: | www.apc.com |
| Brand Name: | APC |
| Product Line: | Switched Rack |
| Product Series: | AP8000 |
| Product Model: | AP8661 |

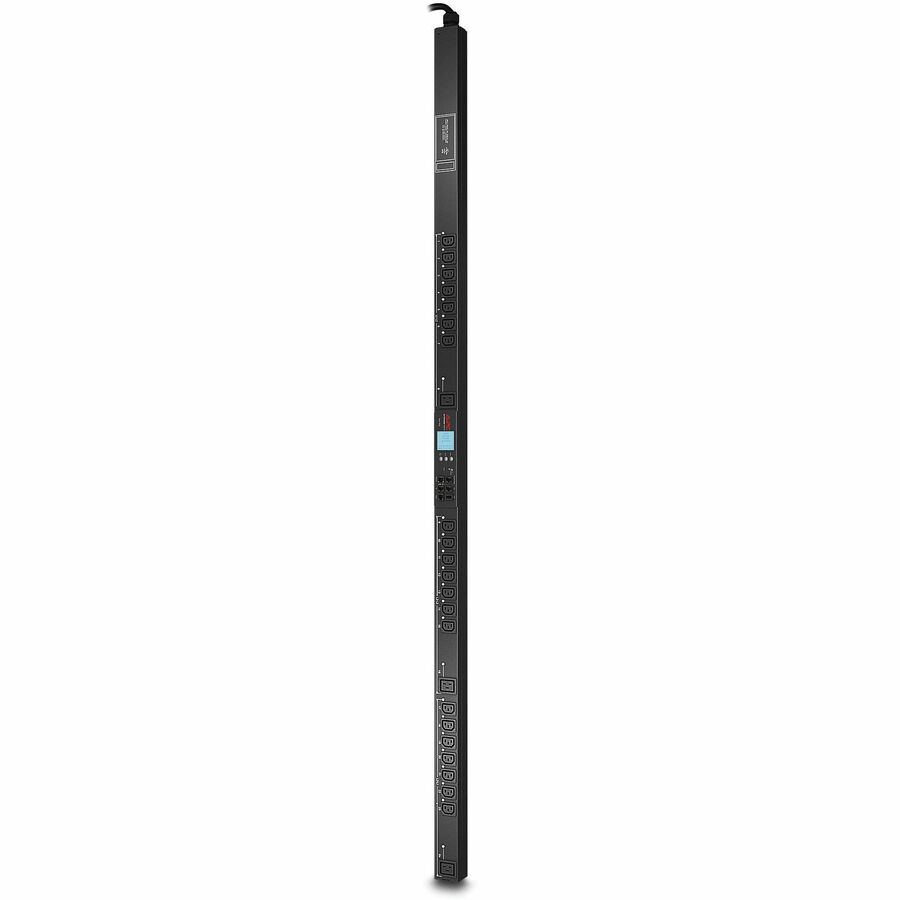

| Product Name: | Switched Rack AP8000 24-Outlets 5.7kW PDU |
| Product Type: | PDU |
| Input Receptacles: | NEMA L21-20P |
|---|---|
| Output Receptacles: | 21 x IEC 60320 C13 |
| 3 x IEC 60320 C19 |
| Input Voltage: | 208 V AC Three-phase |
|---|---|
| Output Voltage: | 208 V AC |
| Current: | 16 A Derated Input Current |
| 20 A Input Current Per Phase | |
| 20 A Line Current Per Phase | |
| 20 A Total Current Draw Per Phase | |
| Frequency: | 50 Hz |
| Power Rating: | 5.70 kVA |
| Management: | Protocols: |
|---|
| Form Factor: | Zero U Rack-mountable |
|---|---|
| Power Cord/Cable: | 1 x 1.83 m |
| 1 x 6 ft | |
| Height: | 1828.8 mm |
| 72.0" | |
| Width: | 2.2" |
| 55.9 mm | |
| Depth: | 2.0" |
| 50.8 mm | |
| Weight (Approximate): | 15.70 lb |
| 7.12 kg |
| Package Contents: | |
|---|---|
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | REACH |
| RoHS |
| Limited Warranty: | 2 Year |
|---|
3 m - NEMA L6-20P - IEC 60320 C19 208 V AC - 20 A - Black
| Limited Warranty: | 2 Year |
|---|
| Sku | Description | Price | Order |
|---|---|---|---|
20119243Q |
APC Remote Monitoring Service - 1 Year--24 x 7 - Technical - Electronic and Physical Service |
$330.43 |
|
20119246Q |
