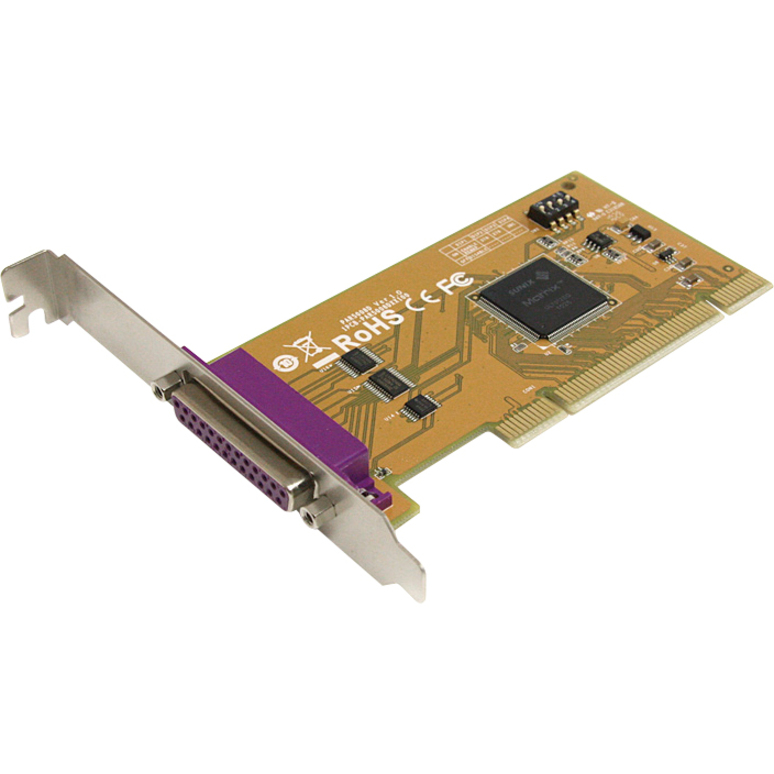

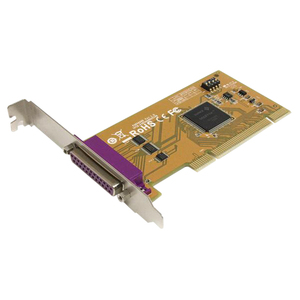

The PCI1PM Re-mappable 1-Port PCI Parallel Card adds a fully-featured, I/O mapped IEEE 1284 parallel port to your system using a PCI expansion slot. Saving time and money in costly upgrades of legacy hardware, this re-mappable parallel card can be installed and configured using legacy memory ranges (278, 378, and 3BC legacy ISA addresses) under DOS and Windows operating systems, for compatibility with legacy devices such as security dongles that require a specific memory I/O range for operation. The card also supports standard installations, with plug-and-play WHQL certified drivers for Windows, as well as support for DOS and Linux. Backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Manufacturer: | StarTech.com |
|---|---|
| Manufacturer Part Number: | PCI1PM |
| Manufacturer Website Address: | www.startech.com |
| Brand Name: | StarTech.com |
| Product Name: | 1 Port PCI Parallel Adapter Card with Re-mappable Address |
| Product Type: | Parallel Adapter |
| Host Interface: | PCI |
|---|---|
| Data Transfer Rate: | 1.80 Mbps Parallel Port |
| Parallel Port Modes: | BPP |
| ECP | |
| EPP | |
| SPP | |
| Platform Supported: | Mac |
| PC |
| Ports: | 1 x 25-pin DB-25 Female IEEE 1284 Parallel |
|---|
| Form Factor: | Plug-in Card |
|---|---|
| Height: | 2.4" |
| 61.0 mm | |
| Width: | 121.0 mm |
| 4.8" | |
| Thickness: | 13.0 mm |
| 511.8 mil | |
| Weight (Approximate): | 2.65 oz |
| 75.0 g |
| Package Contents: | |
|---|---|
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | RoHS |
| Limited Warranty: | Lifetime |
|---|
