  • StarTech.com 4 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included

  • 4 x DB-9 Male RS-232 Serial - Plug-in Card - DB-9 Male 8.3 Fan-out Cable

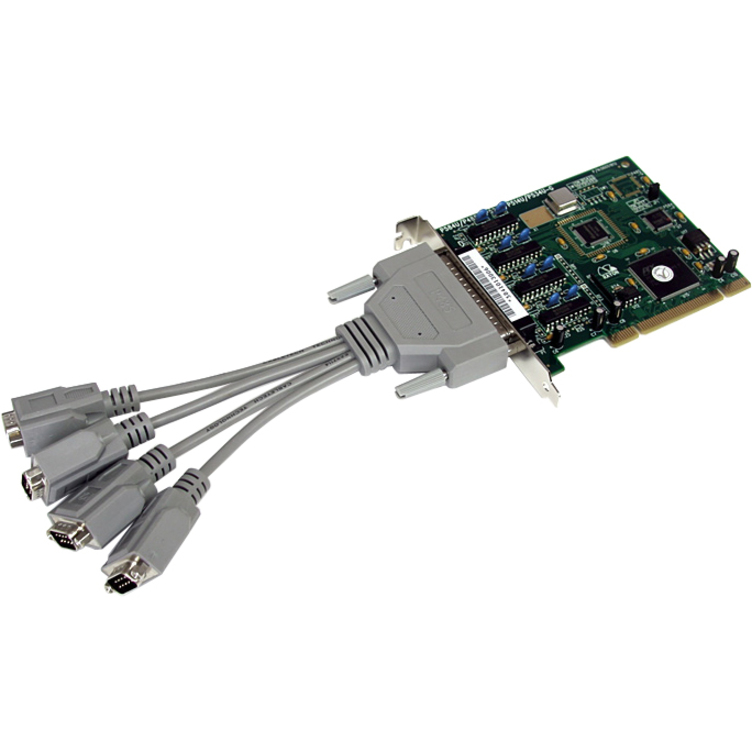

StarTech.com 4 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included PCI4S9503V
Original
* Image here may not represents actual product

  • StarTech
  • MFR Part #
  • PCI4S9503V

  • FrontierPC WebID:
  • 10240496

Features:


This high speed Serial PCI Card uses a 16 Byte buffer simultaneously in both transmit and receive channels, reducing the number of CPU interrupts while improving system performance._x000D_ The card lets you connect up to 4 RS-232 serial devices to the host computer, and can be installed in either a 3.3V or 5V PCI/PCI-X slot._x000D_ Ideally suited to industrial applications, the buffered Serial PCI card is compatible with a broad range of operating systems, including Windows, DOS, Linux, and Unix operating environments._x000D_ Backed by Lifetime Warranty.

Quick Specs:

  • 4 x DB-9 Male RS-232 Serial

  • Plug-in Card

  • DB-9 Male 8.3 Fan-out Cable

warranty
frenchsite
  • Specification
  • Warranty
  • Similar Products
  • Write a Review
General Information
Manufacturer: StarTech.com
Manufacturer Part Number: PCI4S9503V
Manufacturer Website Address: www.startech.com
Brand Name: StarTech.com
Product Name: 4 Port PCI Serial Adapter Card w/ Cable
Product Type: Multiport Serial Adapter
Technical Information
Host Interface: PCI
Data Transfer Rate: Up to 921.60 Kbps
Buffer: 16 Byte Receive
16 Byte Transmit
UART Type: 16950
Protocols: RS-232
Control Signals: CTS
DCD
DSR
DTR
FG
RI
RTS
RXD
SG
TxD
Platform Supported: PC
Interfaces/Ports
Ports: 1 x 37-pin DB-37 Female
Ports Expandability: 4 x 9-pin DB-9 Male RS-232 - Serial, Via Cable
Power Description
Input Voltage: -12 V DC
12 V DC
3.3 V DC
5 V DC
Input Current: 290 mA @ 5 V DC
50 mA @ -12 V DC
50 mA @ 12 V DC
Physical Characteristics
Form Factor: Plug-in Card
Dimensions: 100.1 mm Height x 126.0 mm Width
3.9" Height x 5.0" Width
Height: 100.1 mm
3.9"
Width: 126.0 mm
5.0"
Miscellaneous
Package Contents:
  • 4-Port Buffered High-Speed 16950 Serial PCI Card
  • Fan-out Cable
    		•
    Compatibility:

    Supported Operating System:

  • Windows 95
  • Windows 98
  • Windows 98SE
  • Windows 2000
  • Windows NT
  • Windows XP
  • Linux & Unix SCO Open Server
    		•
    Certifications & Standards:
  • Safety Standards Europe: CE
  • Safety Standards International: UL
  • Safety Standards North America: FCC
    		•
    Cable Information: DB-9 Male 21.08 cm Fan-out Cable
    DB-9 Male 8.30" Fan-out Cable
    Warranty
    Limited Warranty: 2 Year
    Warranty
    Limited Warranty: 2 Year
