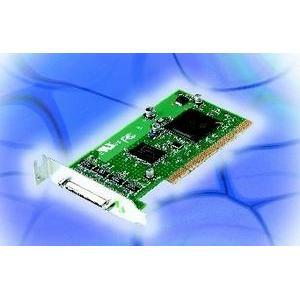

The AccelePort Xp Universal PCI (3.3V & 5V) cards are powerful, highly integrated 80 Mhz RISC processor-based products that deliver the highest level of intelligence and performance available on the market. The availability of 4 high-speed serial ports per card, the wide array of connector options, the small form factor, and the industry leading surge protection on each signal provides wide application flexibility.
| Manufacturer: | Digi International |
|---|---|
| Manufacturer Part Number: | 77000845 |
| Manufacturer Website Address: | www.digi.com |
| Brand Name: | Digi |
| Product Line: | AccelePort |
| Product Series: | Xp |
| Product Name: | AccelePort Xp 4-Port Multiport Serial Adapter |
| Product Type: | Multiport Serial Adapter |
| Host Interface: | PCI-X |
|---|---|
| Data Transfer Rate: | Up to 921.60 Kbps Per Port Maximum |
| Protocols: | RS-232 |
| Platform Supported: | PC |
| Processor: | 80 MHz RISC Integrated |
|---|
| Ports: | 1 x 68-pin HD-68 Female - SCSI External |
|---|---|
| Ports Expandability: | 4 x RJ-45 RS-232 - Serial, Via Cable (Optional) |
| 4 x 25-pin DB-25 RS-232 - Serial, Via Cable (Optional) | |
| 4 x 9-pin DB-9 RS-232 - Serial, Via Cable (Optional) |
| Input Voltage: | 12 V DC 5% |
|---|---|
| 3.3 V DC | |
| 5 V DC 5% | |
| Input Current: | 100 mA Typical @ 12 V DC |
| 640 mA Typical @ 5 V DC | |
| Surge Suppression: | 15 kV DC On all signals |
| Temperature: | -13°F (-25°C) to 185°F (85°C) Storage |
|---|---|
| 50°F (10°C) to 131°F (55°C) Operating | |
| Humidity: | 5 to 90% Relative Humidity |
| Altitude: | 0 ft to 12000 ft |
| 0 m to 3657.60 m |
| Form Factor: | Plug-in Card |
|---|---|
| Dimensions: | 2.5" Height x 4.7" Width x 0.7" Thickness |
| 62.9 mm Height x 119.9 mm Width x 18.4 mm Thickness | |
| Height: | 2.5" |
| 62.9 mm | |
| Width: | 119.9 mm |
| 4.7" | |
| Thickness: | 18.4 mm |
| 725.0 mil | |
| Weight (Approximate): | 170.1 g |
| 6.00 oz |
| Additional Information: | |
|---|---|
| Compatibility: | Supported Operating System: |
| Certifications & Standards: |
| Limited Warranty: | 5 Year |
|---|
| Limited Warranty: | 5 Year |
|---|
4 x DB-9 RS-232 Serial, 4 x DB-25 RS-232 Serial, 4 x RJ-45 RS-232 Serial - Plug-in Card
4 x DB-9 RS-232 Serial, 4 x DB-25 RS-232 Serial, 4 x RJ-45 RS-232 Serial - Plug-in Card
