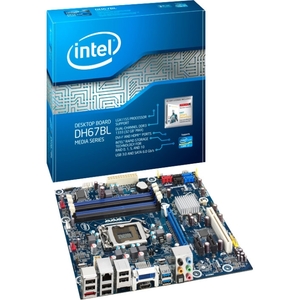

The Intel Desktop Board DH67BL is an Intel H67 Express chipset-based desktop board in microATX form factor. It supports the 2nd generation Intel Core i7 processors, Intel Core i5 processors, and other Intel processors in the LGA1155 package. The board is featured with DVI-I and HDMI connectors, and supports dual independent display for processors with Intel HD Graphics. Powered by the 2nd generation Intel Core processors, DH67BL delivers a superb visual performance for sharper images, richer color, and lifelike audio and video.
Intel Desktop Board DH67BL also offers premium features, such as two SATA 6 Gb/s ports, two USB 3.0 ports with 5Gb/s link speed, and Intel Rapid Storage Technology (Intel RST) for RAID 0, 1, 5, and 10, which provides new levels of protection, performance, and expandability.
| Manufacturer: | Intel Corporation |
|---|---|
| Manufacturer Part Number: | BOXDH67BLB3 |
| Manufacturer Website Address: | www.intel.com |
| Brand Name: | Intel |
| Product Line: | Media |
| Product Model: | DH67BL |
| Product Name: | Media DH67BL Desktop Motherboard |
| Packing: | Box |
| Product Type: | Desktop Motherboard |
| Chipset Manufacturer: | Intel |
|---|---|
| Chipset Model: | H67 Express |
| Total Processor Supported: | 1 |
| Processor Socket: | Socket H2 LGA-1155 |
| Processor Supported: | Core i3 |
| Core i5 | |
| Core i7 | |
| 64-bit Processing: | Yes |
| Number of Memory Slots: | 4 |
|---|---|
| Maximum Memory: | 32 GB |
| Memory Standard: | DDR3-1066/PC3-8500 |
| DDR3-1333/PC3-10600 | |
| Memory Technology: | DDR3 SDRAM |
| Controller Type: | Serial ATA/300 |
|---|---|
| Serial ATA/600 | |
| RAID Supported: | Yes |
| RAID Levels: | 0 |
| 0+1 | |
| 1 | |
| 5 |
| Onboard Video: | CPU Dependent Video |
|---|---|
| Graphics Controller Manufacturer: | Intel |
| Sound Controller Manufacturer: | Realtek |
|---|---|
| Sound Controller Model: | ALC892 |
| Audio Channels: | 9.1 |
| Gigabit Ethernet: | Yes |
|---|
| Number of Total Expansion Slots: | 4 |
|---|---|
| Number of PCI Slots: | 1 |
| PCI Express Standard: | PCI Express 2.0 |
| Total Number of PCI Express Slots: | 3 |
| Number of PCI Express x1 Slots: | 2 |
| Number of PCI Express x16 Slots: | 1 |
| eSATA: | Yes |
|---|---|
| Total Number of USB Ports: | 8 |
| Number of USB 2.0 Ports: | 6 |
| Number of USB 3.0 Ports: | 2 |
| Audio Line In: | Yes |
| Audio Line Out: | Yes |
| Microphone Port: | Yes |
| S/PDIF: | Yes |
| Number of S/PDIF Out Ports: | 1 |
| HDMI: | Yes |
| Number of HDMI Outputs: | 1 |
| DisplayPort: | Yes |
| Number of DisplayPort Outputs: | 1 |
| DVI: | Yes |
| Number of DVI Outputs: | 1 |
| Network (RJ-45): | Yes |
| Number of SATA Interfaces: | 4 |
|---|---|
| Total Number of Onboard USB Ports: | 8 |
| Number of Onboard USB 2.0 Ports: | 8 |
| Onboard LEDs Header: | Yes |
| Onboard Audio Header: | Yes |
| Onboard S/PDIF Header: | Yes |
| Power Supply Supported: | ATX12V |
|---|
| Form Factor: | Micro ATX |
|---|---|
| Width: | 243.8 mm |
| 9.6" | |
| Depth: | 243.8 mm |
| 9.6" |
