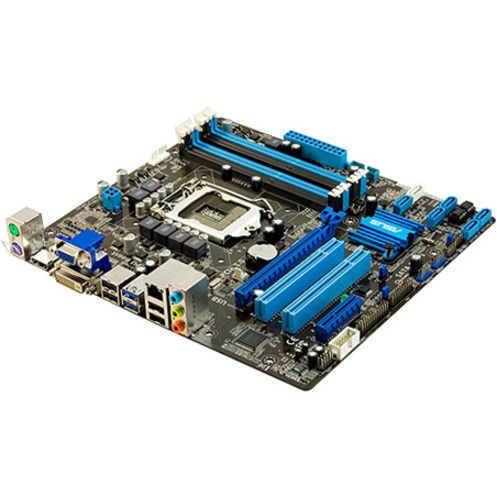

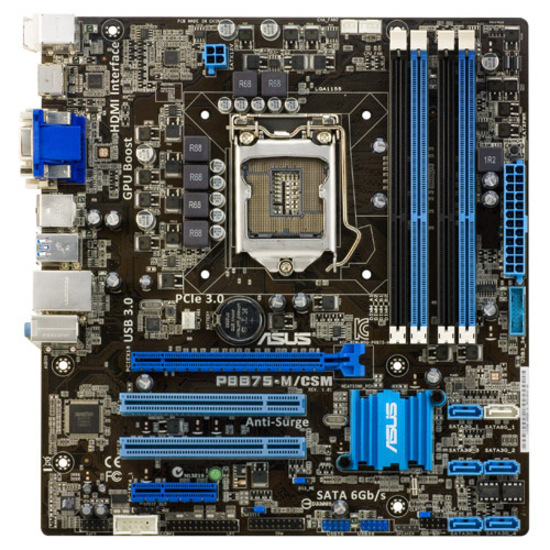

This motherboard supports the Intel 3rd/2nd generation processors in the LGA1155 package , with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 3rd/2nd generation processors are among the most powerful and energy efficient CPUs in the world.
| Manufacturer: | ASUS Computer International |
|---|---|
| Manufacturer Part Number: | P8B75-M/CSM |
| Manufacturer Website Address: | usa.asus.com |
| www.asus.com | |
| Brand Name: | Asus |
| Product Model: | P8B75-M/CSM |
| Product Name: | P8B75-M/CSM Desktop Motherboard |
| Product Type: | Desktop Motherboard |
| Chipset Manufacturer: | Intel |
|---|---|
| Chipset Model: | B75 Express |
| Total Processor Supported: | 1 |
| Processor Technology: | Turbo Boost Technology 2.0 |
| Processor Socket: | Socket H2 LGA-1155 |
| Processor Supported: | Core i3 |
| Core i5 | |
| Core i7 | |
| 64-bit Processing: | Yes |
| Number of Memory Slots: | 4 |
|---|---|
| Memory Form Factor: | UDIMM |
| Maximum Memory: | 32 GB |
| Memory Standard: | DDR3-1600/PC3-12800 |
| Memory Technology: | DDR3 SDRAM |
| Controller Type: | Serial ATA/300 |
|---|---|
| Serial ATA/600 |
| Onboard Video: | CPU Dependent Video |
|---|
| Sound Controller Manufacturer: | VIA |
|---|---|
| Sound Controller Model: | VT1708S |
| Audio Channels: | 7.1 |
| Gigabit Ethernet: | Yes |
|---|
| Number of Total Expansion Slots: | 4 |
|---|---|
| Number of PCI Slots: | 2 |
| PCI Express Standard: | PCI Express 2.0 |
| PCI Express 3.0 | |
| Total Number of PCI Express Slots: | 2 |
| Number of PCI Express x4 Slots: | 1 |
| Number of PCI Express x16 Slots: | 1 |

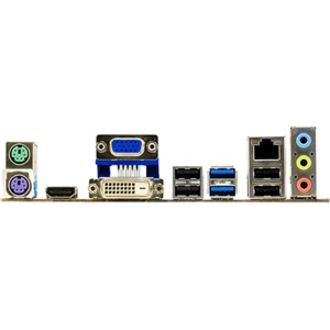

| Total Number of USB Ports: | 6 |
|---|---|
| Number of USB 2.0 Ports: | 4 |
| Number of USB 3.0 Ports: | 2 |
| Audio Line In: | Yes |
| Audio Line Out: | Yes |
| Microphone Port: | Yes |
| VGA: | Yes |
| HDMI: | Yes |
| Number of HDMI Outputs: | 1 |
| DVI: | Yes |
| Number of DVI Outputs: | 1 |
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
| PS/2 Port: | Yes |
| Number of PS/2 Ports: | 2 |
| Number of SATA Interfaces: | 6 |
|---|---|
| Total Number of Onboard USB Ports: | 6 |
| Number of Onboard USB 2.0 Ports: | 4 |
| Number of Onboard USB 3.0 Ports: | 2 |
| Onboard Parallel Header: | Yes |
| Onboard Serial Header: | Yes |
| Onboard LEDs Header: | Yes |
| Onboard Audio Header: | Yes |
| Onboard S/PDIF Header: | Yes |
| Buttons & Keys: | MemOK |
|---|
| Power Supply Supported: | EPS12V |
|---|
| Form Factor: | Micro ATX |
|---|---|
| Width: | 243.8 mm |
| 9.6" | |
| Depth: | 226.1 mm |
| 8.9" |
| Package Contents: |
|
|---|---|
| Certifications & Standards: |
|
| Green Compliant: | Yes |
| Green Compliance Certificate/Authority: | RoHS |
| WEEE |
| Limited Warranty: | 3 Year |
|---|
| Limited Warranty: | 3 Year |
|---|
