  • Asus F1A55-M LX PLUS Desktop Motherboard - AMD A55 Chipset - Socket FM1 **

  • Micro ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - CrossFireX Support - Serial ATA/300 RAID Supported Controller - On-board Video Chipset - 2 x PCIe x16 Slot

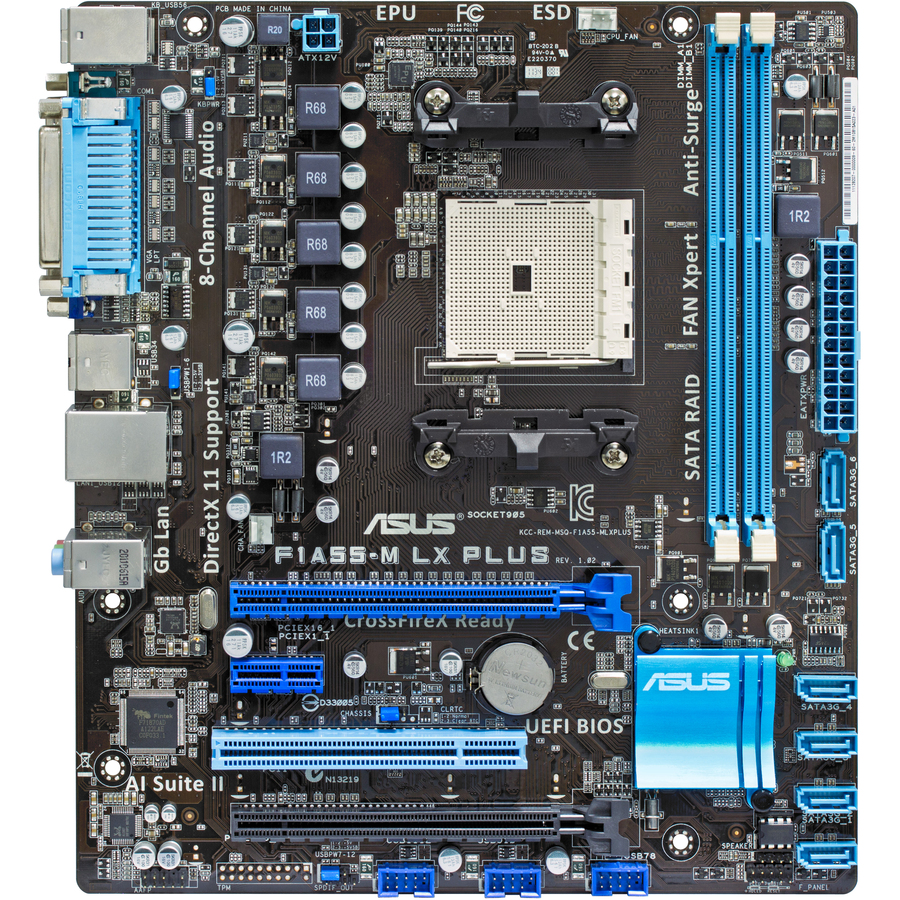

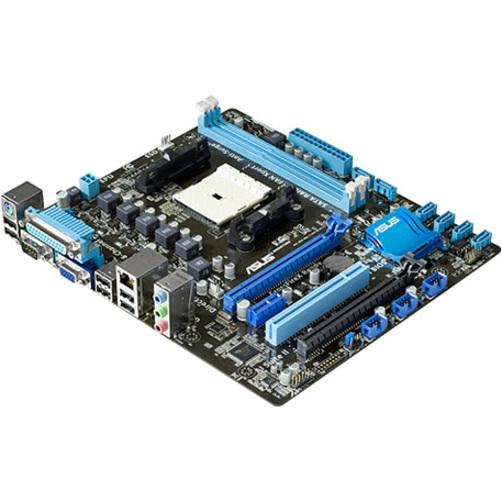

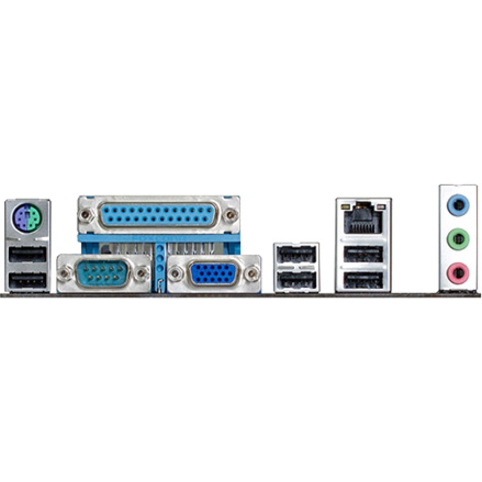

Asus F1A55-M LX PLUS Desktop Motherboard - AMD A55 Chipset - Socket FM1 F1A55-M LX PLUS
Front
Left
900
* Image(s) and product specifications may not represent actual product and are subject to change

  • ASUS
  • MFR Part #
  • F1A55-M LX PLUS

  • FrontierPC WebID:
  • 1021801448

Features:


This motherboard supports AMD A-& E2- series Accelerated Processor with AMD Radeon HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s.

Quick Specs:

  • Chipset Manufacturer:
    • AMD
  • Chipset Model:
    • A55
  • Processor Socket:
    • Socket FM1
  • Processor Supported:
    • Athlon II X2
    • Athlon II X4
    • Sempron Dual Core
  • Maximum Memory:
    • 32 GB
  • Memory Technology:
    • DDR3 SDRAM
  • Number of PCI Express x16 Slots:
    • 2
  • Form Factor:
    • Micro ATX
asus_reseller
frenchsite
** NOTE: This product cannot be returned once the packaging has been opened unless the item is defective.
  • Specification
  • Write a Review
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: F1A55-M LX PLUS
Manufacturer Website Address: usa.asus.com
www.asus.com
Brand Name: Asus
Product Model: F1A55-M LX PLUS
Product Name: F1A55-M LX PLUS Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: A55
Total Processor Supported: 1
Processor Technology: Turbo CORE Technology
Processor Socket: Socket FM1
Processor Supported: Athlon II X2
Athlon II X4
Sempron Dual Core
HyperTransport Speed: 5 GT/s
64-bit Processing: Yes
Multi GPU Supported: CrossFireX
Memory
Number of Memory Slots: 2
Memory Form Factor: DIMM
Maximum Memory: 32 GB
Memory Standard: DDR3-1066/PC3-8500
DDR3-1333/PC3-10600
DDR3-1600/PC3-12800
DDR3-1866/PC3-15000
DDR3-2250/PC3-18000 (O.C.)
Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels: 0
1
1+0
JBOD
Video
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: AMD
Graphics Controller Model: Radeon HD 6000
Audio
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC887
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Number of PCI Slots: 1
PCI Express Standard: PCI Express 2.0
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 6
Parallel Port: Yes
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
PS/2 Port: Yes
Number of PS/2 Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 6
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Onboard S/PDIF Header: Yes
Power Description
Power Supply Supported: EPS12V
Physical Characteristics
Form Factor: Micro ATX
Width: 243.8 mm
9.6"
Depth: 213.4 mm
8.4"
Miscellaneous
Package Contents:
  • F1A55-M LX PLUS Desktop Motherboard
  • User's Manual
  • I/O Shield
  • 2 x SATA 3Gb/s Cable(s)
  • 1 x Support DVD
Certifications & Standards:
  • FCC Class B
  • CE
  • ErP Ready
Green Compliant: Yes
Green Compliance Certificate/Authority: REACH
RoHS
WEEE
